Facility

Welding Facility

Equipment

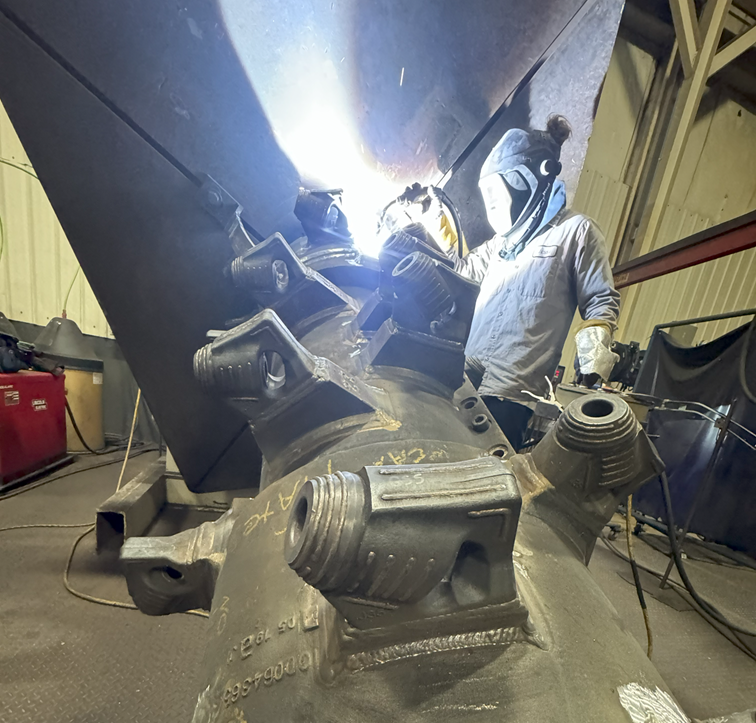

• Welding Stations
– (8) 655Amp CC/CV Power Source Duel Head Feeders allowing .035 – 3/32 Capacity
– (3) Duel Head Die Welding Manipulators capable of running 1/8” dia Flux Core Wire
– (2) 350Amp Tig Machines
– All stations contain heating capabilities
• 12’ Stationary Weld Manipulator Unit
• Carbon, Stainless Steel, Specialty Alloys, Cast, forged, and Aluminum Applications

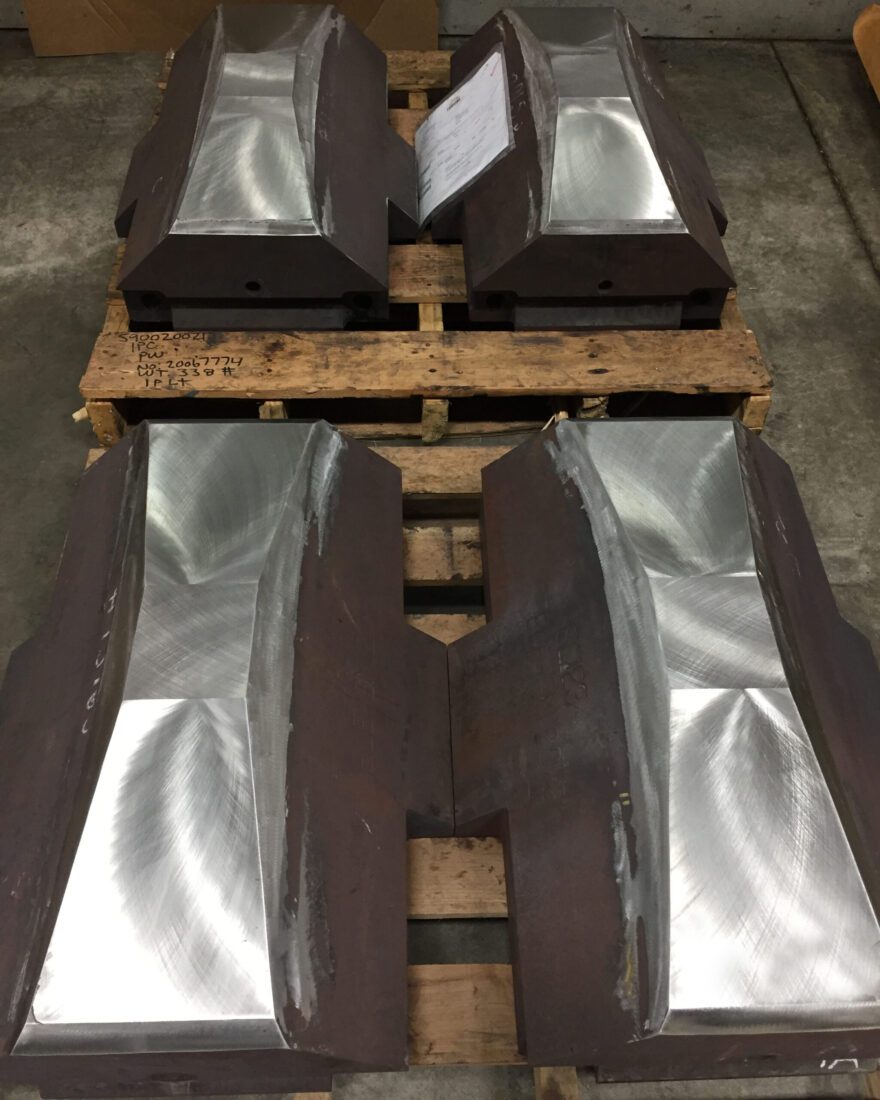

• Tool and Die Welding Applications
• Bore-Tech Bore Welding Machine (ID and OD)
• 7 Welding Positioners with up to 40,000lbs capacity
• 1500Amp Air Arc – up to 20mm carbon rod capacity
• Motoman 6axis 120” reach MH50-20 Robotic Die Welding System with state-of-the-art software

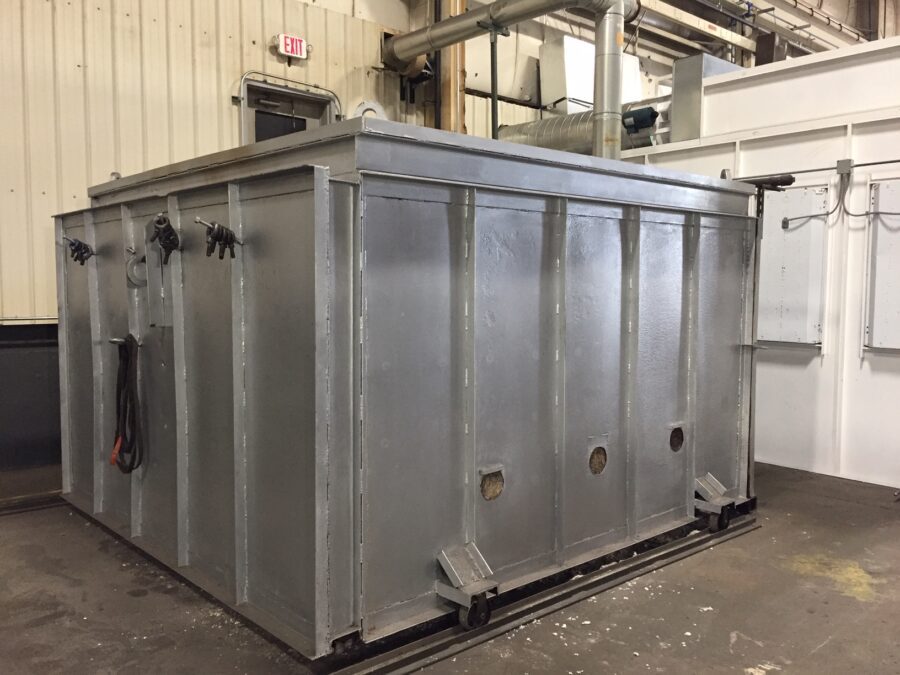

Stress Relief Capabilities

• Omega HH806 Digital Temperature & Report Monitoring Systems
• Ramp up – Soak – Ramp down temperature controls (Company name)
• Temperatures range up to 1150⁰F

Plate Processing & Sawing

– (400Amp) Plasma up to 2”
-Oxy Fuel Cutting up to 6”
• 2 Buggo Plate Bevel Cutting System
• 250-ton Accupress CNC 12ft Press Brake
• CNC Amada HA250W automatic feed Band Saw
• Hyd-Mech Band Saw
• Scotchman 12” dia Cold Saw
• Scotchman 120-ton Iron Worker

Press

70.5” x 61” Table
70.5” Stroke
225-ton Capacity
