Machining Facilities

by jonmachining May 16, 2024June 14, 2024No Comments

Our 52,000 sq ft Machining Facility in Franklin, PA

Our expansive 52,000-square-foot machining facility in Franklin, PA, is equipped with a broad array of advanced equipment to meet diverse manufacturing needs. The facility houses grinders, electric discharge machines (EDMs), lathes, vertical turning centers, vertical milling machines, horizontal milling machines, and manual milling machines, enabling us to perform a wide range of precision machining tasks. Additionally, all CAD work is conducted within this facility, ensuring seamless integration from design to production. This comprehensive setup allows Shaw Industries and Welding Technologies to deliver high-quality, precise components tailored to the specific requirements of our clients.

Lathes

by jonequipment, machining May 15, 2024July 2, 2024No Comments

Mazak Integrex E-500H-S
5 Axis
Twin Spindle
32” Max Swing
100” Max Length
120 Tool Capacity

Mazak Integrex i-450H-S
5 Axis
Twin Spindle
26 Max Swing
60” Max Length
4” Max Bar Work Capacity
77 Tool Capacity

Hyundai Wia LY3000
Live Tooling
16.5” Turning Dia
29.9” Length
4.8” Stroke

Vertical Turning Center

by jonequipment, machining May 15, 2024July 2, 2024No Comments

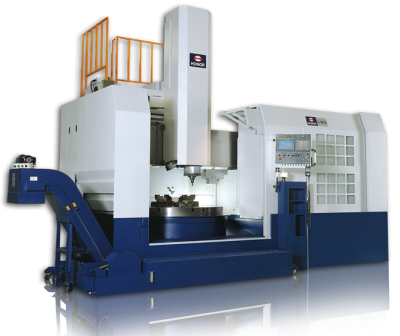

Honor-Seki VL/160 cm
Live Tooling
78” max swing, 45” max height
17,600lb Capacity

Toyoda VTC1616
Live tooling
72” max swing, 72” max height
17,600lb Capacity

Vertical Milling Machines

by jonequipment, machining May 14, 2024July 2, 2024No Comments

Toyoda-Stealth VB315
3 Axis
118” x 59” x 31.5” Travel
6,000 Max rpm
22,000lb Capacity

(2) Toyoda-Stealth VB215
3 Axis
79.5” x 59” x 31.5” Travel
6,000 Max rpm
17,600lb Capacity

Mazak FJV 50/120
3 Axis
126” x 45” x 23”
6,000 Max rpm
11,000lb Capacity

Mazak FJV 50/80
3 Axis
78” x 45” x 23” Travel
6,000 Max rpm
8,000lb Capacity

Toyoda FV1680
3 Axis
63” x 31.5” x 31.5” Travel
68” x 31.5” Table
6,000 Max rpm
4,400lb Capacity

Quantum Q-2000
3 Axis
80” x 35” x 32” Travel
6,000 Max rpm
6,600lb Capacity

Haas VF2 VCM
30” x 16” x 20” Travel
20hp Dual Drive
15,000 rpm Spindle
3,000lb Capacity

Horizontal Milling Machines

by jonequipment, machining May 13, 2024July 2, 2024No Comments

(3) Hyundai Kia KBN 135 Horizontal Boring Mill
4axis
118” L, 63” W, 78” H, spindle reach 27”
30,000lb Capacity

Hyundai Kia KH80G
4 Axis
49” x 39” x 33” Travel
Dual pallets (31.5” x 31.5”)
40 station tool changers
4,840lb Capacity

Hyundai Kia KH1000
82.5″ x 53″ x 55″ Travel
Dual Pallet (40” x 40”)
60 station tool changers
8000 RPM
6,600 Capacity

Hyundai Wia HS6300
4 Axis
Dual Pallet (24.8” x 24.8”)
12,000 Max rpm
2,645 Capacity

Mori-Seiki SH400
4 Axis
22” x 20” x 20” Travel
Dual Pallets (15.7” x 15.7”)
12,000 Max rpm
1,100lb Capacity

Electric Discharge Machines (EDM)

by jonequipment, machining May 12, 2024June 14, 2024No Comments

Excetek W650 Wire EDM
39.4” x 27.6” x 15.7 Table
.004 – .012 Wire Dia.
3,600lb Capacity

Eltee Pulsitron
16” x 14” x 20” Working Envelope

Grinders

by jonequipment, machining May 11, 2024June 14, 2024No Comments

Blanchard Grinder
48” Magnetic Table
54” Swing

(2) Harig
6” x 12”

Manual Milling Machines

by jonequipment, machining March 10, 2024July 2, 2024No Comments

(3) Vertical Bridgeport with Readouts
